Holybro Pixhawk 4 Power Module (PM07)

The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.

::: info This module can be purchased as bundle with Pixhawk 4, but can also be used with other flight controllers. :::

Specifications

• PCB Current: total 120A outputs (MAX)
• UBEC 5v output current: 3A
• UBEC input voltage: 2~12s LiPo
• Dimensions: 68 x 50 x 8 mm
• Mounting Holes: 45 x 45 mm
• Weight: 36g

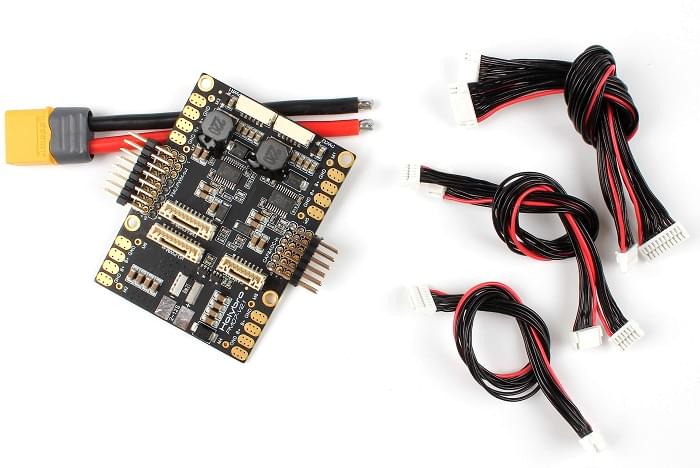

Package Contents

• PM07 board
• 80mm XT60 connector wire (installed)
• Electrolytic capacitor: 220uF 63V (installed)
• 2x JST GH 10P Cable
• JST GH 8P Cable
• 2x JST GH 6P Cable

Where to Buy

Pixhawk 4 Power Module (PM07)

Wiring/Connections

Wiring and connection information can be found in: Pixhawk 4 > Power.

Further Information

Quick Start Guide (Holybro)
