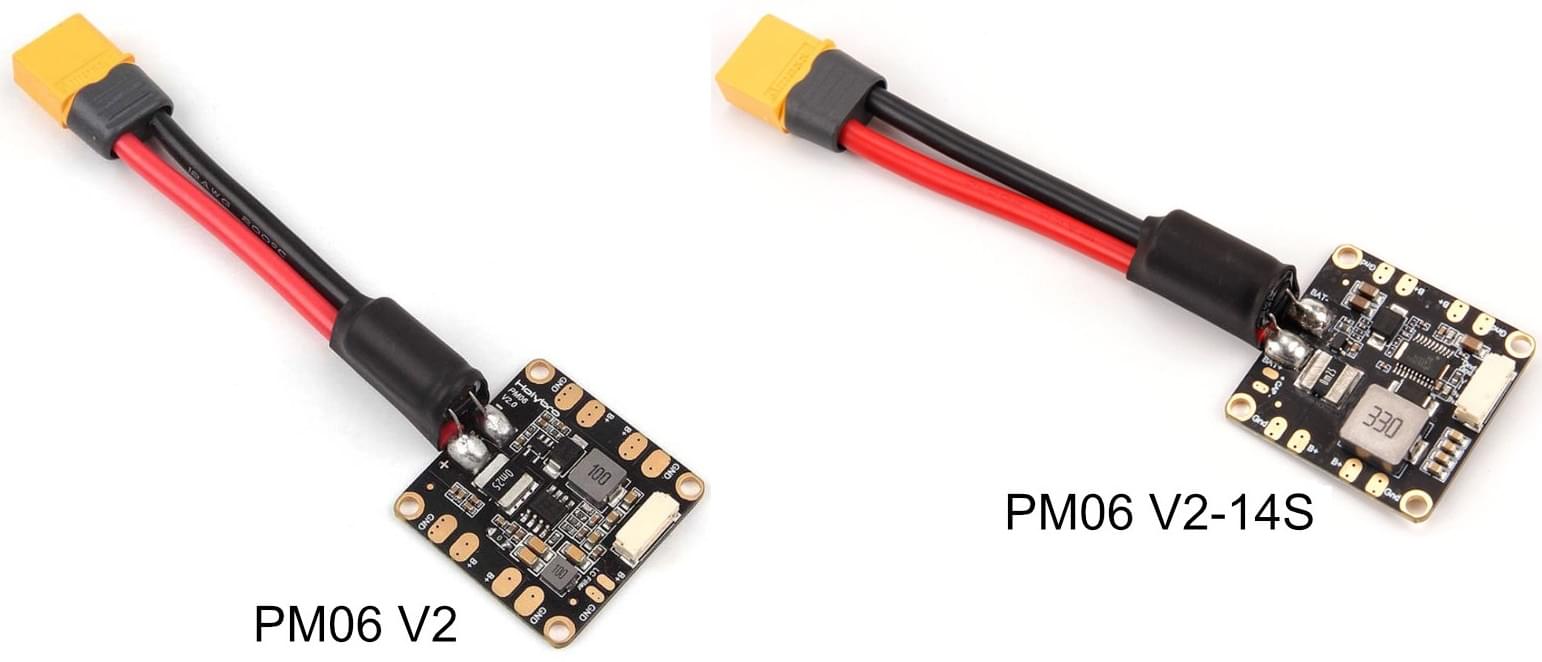

Holybro Micro Power Module (PM06)

This power module has integrated power distribution board and provides regulated power for a flight controller and ESCs, and sends information to the autopilot about the battery’s voltage and current draw.

Specifications

• PCB Current: 120A continued
• UBEC Current: 3A Max
• Power input: 2S~10S (standard version)
• Power input: 2S~14S (14S version)
• Power output: DC 5.1V~5.3V
• Voltage Divider: 18.182
• Amperes per Volt: 36.364

Mechanical Specifications

• Dimensions: 35x35x5mm
• Mounting hole: 30.5mm*30.5mm
• Weight: 24g

Where to Buy

PM06 V2 Power Module

Wiring/Connections

This image shows the wiring and connections for the Pixhawk 4 Mini (discontinued).
